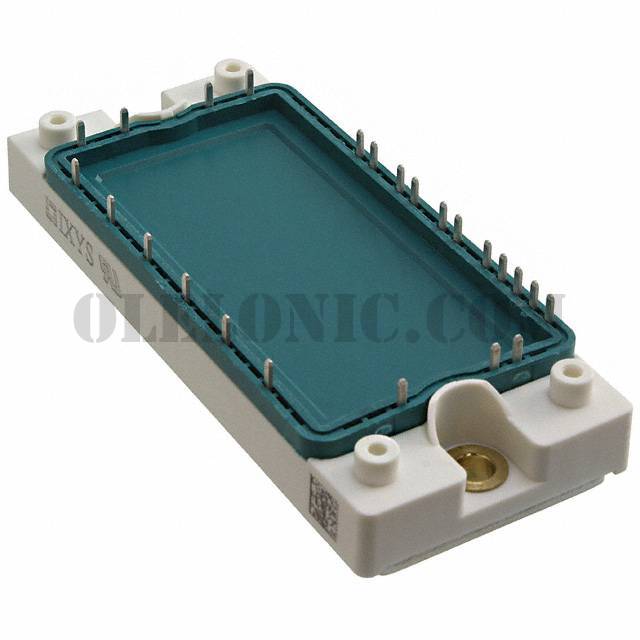

MUBW10-06A7

Part NumberMUBW10-06A7

ManufacturerIXYS

DescriptionCONVERTER/BRAKE/INVERTER 1.9VCE

DatasheetMUBW10-06A7

Package / CaseE2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Three Phase Inverter with Brake 600V 20A 85W Chassis Mount E2

To learn about the specification of MUBW10-06A7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MUBW10-06A7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MUBW10-06A7.
We are offering MUBW10-06A7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MUBW10-06A7 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

MUBW10-06A7

Standard Package

Manufacturer

IXYS

Series

Part Status

Active

IGBT Type

NPT

Configuration

Three Phase Inverter with Brake

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

20A

Power - Max

85W

Vce(on) (Max) @ Vge, Ic

2.3V @ 15V, 10A

Current - Collector Cutoff (Max)

600µA

Input Capacitance (Cies) @ Vce

0.6nF @ 25V

Input

Three Phase Bridge Rectifier

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Supplier Device Package

Base Part Number

MUBW
