Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	MT3S113TU
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	5.3V
Frequency - Transition	11.2GHz
Noise Figure (dB Typ @ f)	1.45dB @ 1GHz
Gain	12.5dB
Power - Max	900mW
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 30mA, 5V
Current - Collector (Ic) (Max)	100mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

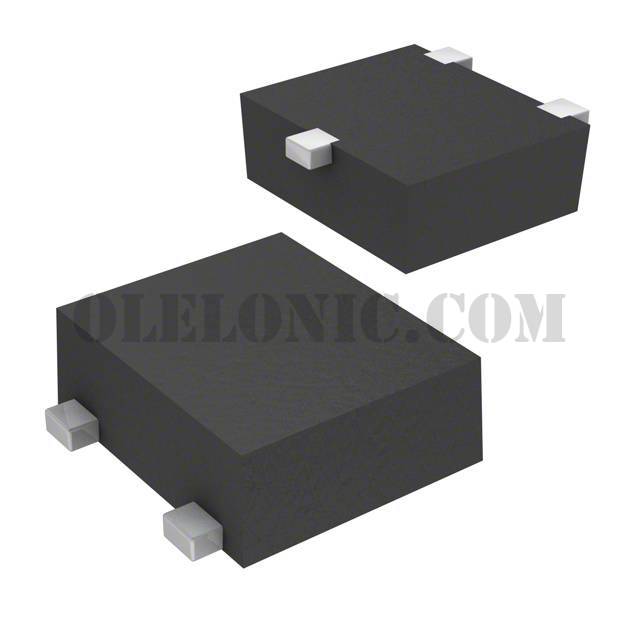

Package / Case	3-SMD, Flat Leads
Supplier Device Package	UFM

55GN01CA-TB-E	ON Semiconductor, RF Transistor NPN 10V 70mA 4.5GHz 200mW Surface Mount 3-CP,	View
BFP720H6327XTSA1	Infineon Technologies, RF Transistor NPN 4.7V 25mA 45GHz 100mW Surface Mount SOT-343,	View
NSVF6003SB6T1G	ON Semiconductor, RF Transistor NPN 12V 150mA 7GHz 800mW Surface Mount 6-CPH, Automotive, AEC-Q101	View
BFR193WH6327XTSA1	Infineon Technologies, RF Transistor NPN 12V 80mA 8GHz 580mW Surface Mount PG-SOT323-3,	View
BFU630F,115	NXP USA Inc., RF Transistor NPN 5.5V 30mA 21GHz 200mW Surface Mount 4-DFP,	View
BFP540ESDH6327XTSA1	Infineon Technologies, RF Transistor NPN 5V 80mA 30GHz 250mW Surface Mount PG-SOT343-4,	View
MMBTH10-TP	Micro Commercial Co, RF Transistor NPN 25V 50mA 650MHz 225mW Surface Mount SOT-23,	View
BFR106E6327HTSA1	Infineon Technologies, RF Transistor NPN 15V 210mA 5GHz 700mW Surface Mount SOT-23-3,	View
2SC5065-O(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 30mA 7GHz 100mW Surface Mount USM,	View
BFR460L3E6327XTMA1	Infineon Technologies, RF Transistor NPN 5.8V 50mA 22GHz 200mW Surface Mount PG-TSLP-3-1,	View
2SC5490A-TL-H	ON Semiconductor, RF Transistor NPN 10V 30mA 8GHz 100mW Surface Mount 3-SSFP,	View
BFU690F,115	NXP USA Inc., RF Transistor NPN 5.5V 100mA 18GHz 230mW Surface Mount 4-DFP,	View

MT3S113TU,LF

Part NumberMT3S113TU,LF
