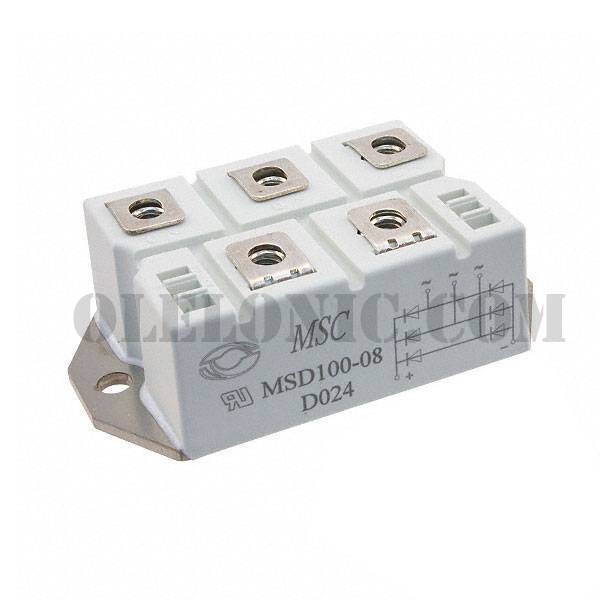

MSD100-08

Part NumberMSD100-08

ManufacturerMicrosemi Corporation

DescriptionBRIDGE RECT 3PHASE 800V 100A M3

DatasheetMSD100

Package / CaseSM3-20H

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBridge Rectifier Three Phase Standard 800V Chassis Mount M3

To learn about the specification of MSD100-08, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MSD100-08 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MSD100-08.
We are offering MSD100-08 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MSD100-08 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Bridge Rectifiers

Datasheet

MSD100

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Obsolete

Diode Type

Three Phase

Technology

Standard

Voltage - Peak Reverse (Max)

800V

Current - Average Rectified (Io)

100A

Voltage - Forward (Vf) (Max) @ If

1.9V @ 300A

Current - Reverse Leakage @ Vr

300µA @ 800V

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SM3-20H

Supplier Device Package
