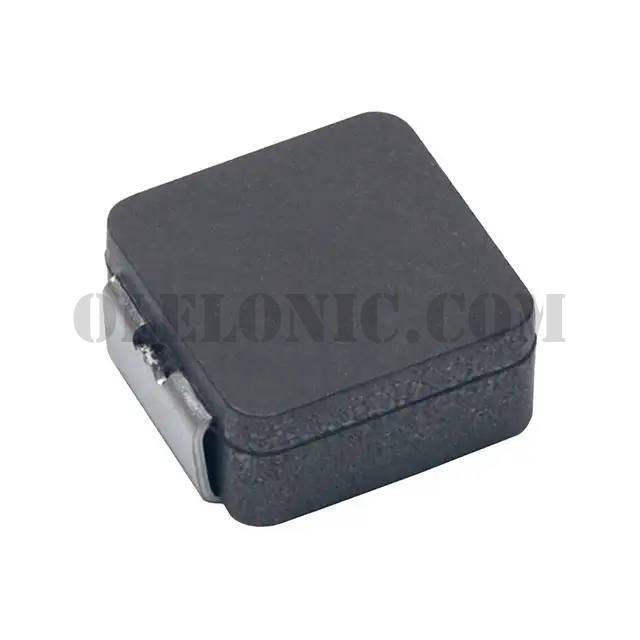

MPX1D0840L1R0


MPX1D0840L1R0

Part NumberMPX1D0840L1R0

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

MPX1D0840L1R0 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerKEMET
SeriesMPX
PackagingTape & Reel (TR)
Part StatusActive
Type-
Material - CoreMetal Composite
Inductance1µH
Tolerance±20%
Current Rating (Amps)20.8A
Current - Saturation28A
ShieldingShielded
DC Resistance (DCR)4.2mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 155°C
Inductance Frequency - Test100kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.341" L x 0.315" W (8.65mm x 8.00mm)
Height - Seated (Max)0.157" (4.00mm)
