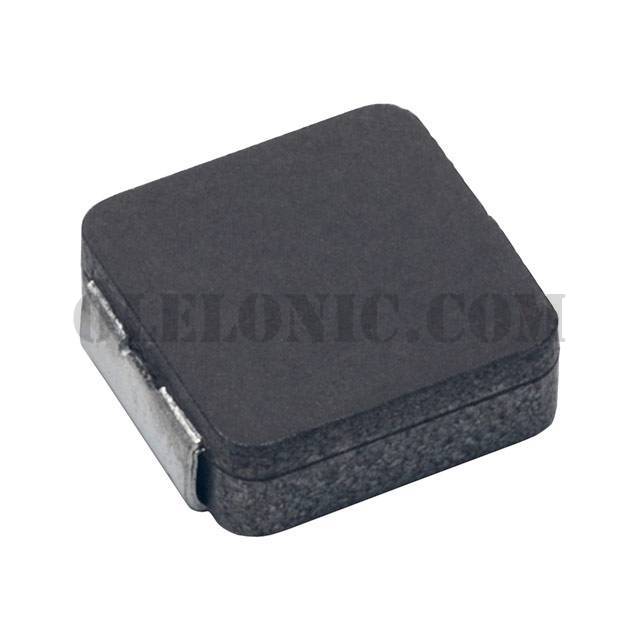

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MPX Series
Standard Package	1
Manufacturer	KEMET
Series	MPX
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	Metal Composite
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	17.6A
Current - Saturation	23A
Shielding	Shielded
DC Resistance (DCR)	5.7mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 155°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.341" L x 0.315" W (8.65mm x 8.00mm)
Height - Seated (Max)	0.118" (3.00mm)
