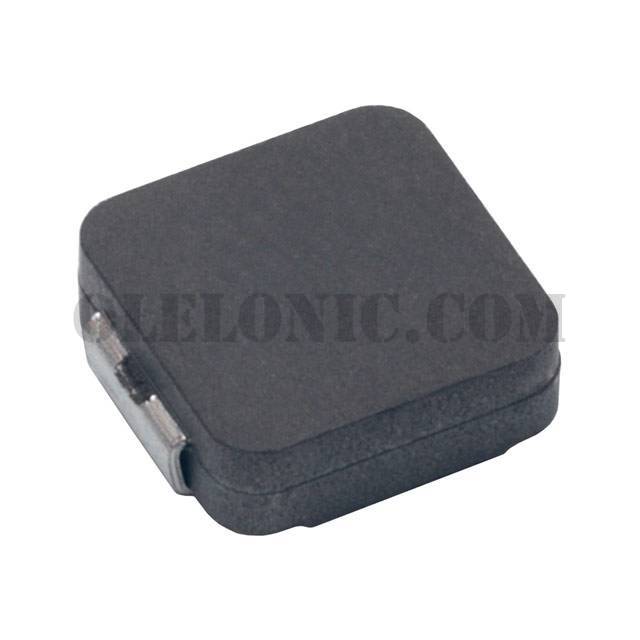

MPX1D0624L1R5


MPX1D0624L1R5

Part NumberMPX1D0624L1R5

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

MPX1D0624L1R5 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerKEMET
SeriesMPX
PackagingCut Tape (CT)
Part StatusActive
Type-
Material - CoreMetal Composite
Inductance1.5µH
Tolerance±20%
Current Rating (Amps)8.1A
Current - Saturation10A
ShieldingShielded
DC Resistance (DCR)18.5mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 155°C
Inductance Frequency - Test100kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.276" L x 0.256" W (7.00mm x 6.50mm)
Height - Seated (Max)0.094" (2.40mm)
