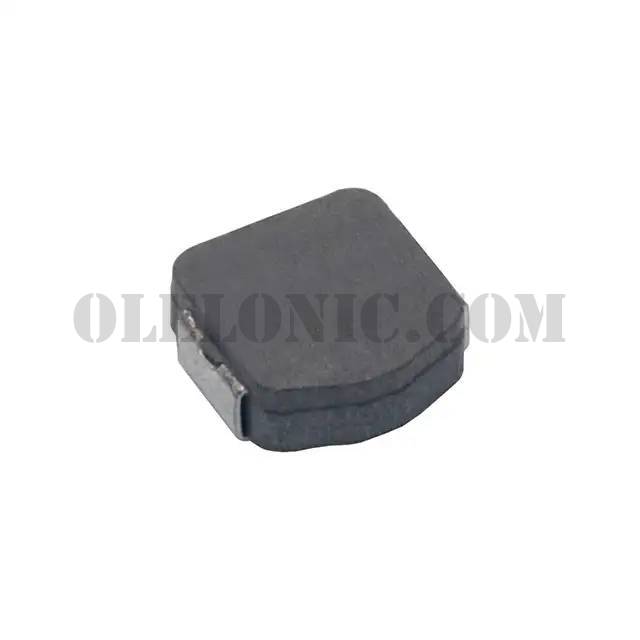

MPX1D0520L3R3
MPX1D0520L3R3
Part Number MPX1D0520L3R3
Manufacturer KEMET
Description INDUCTOR METAL 3.3 UH, 5.5A, 64.
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 3.3µH Shielded Inductor 4.1A 64.2mOhm Max Nonstandard
To learn about the specification of MPX1D0520L3R3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MPX1D0520L3R3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MPX1D0520L3R3.
We are offering MPX1D0520L3R3 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
MPX1D0520L3R3 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet MPX Series
Standard Package 1
Manufacturer KEMET
Series MPX
Packaging Cut Tape (CT)
Part Status Active
Type -
Material - Core Metal Composite
Inductance 3.3µH
Tolerance ±20%
Current Rating (Amps) 4.1A
Current - Saturation 5.5A
Shielding Shielded
DC Resistance (DCR) 64.2mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -55°C ~ 155°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.209" L x 0.197" W (5.30mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
