Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MP5005 - 5010
Standard Package	400
Manufacturer	Micro Commercial Co
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	50A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 25A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	4-Square, MP-50
Supplier Device Package	MP-50
Base Part Number	MP506

GBPC2502-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
GBPC3510-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View
GBPC1202	ON Semiconductor, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
GBPC1502	ON Semiconductor, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
VS-26MT160	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 1.6kV QC Terminal D-63,	View
GBPC1502-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
VUO36-12NO8	IXYS, Bridge Rectifier Three Phase Standard 1.2kV QC Terminal FO-B,	View
VS-26MT20	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 200V QC Terminal D-63,	View
VS-26MB40A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 400V QC Terminal D-34,	View
VS-36MT20	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 200V QC Terminal D-63,	View
KBPC10005-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V QC Terminal KBPC,	View
SC50VB160-G	Comchip Technology, Bridge Rectifier Three Phase Standard 1.6kV QC Terminal SCVB,	View

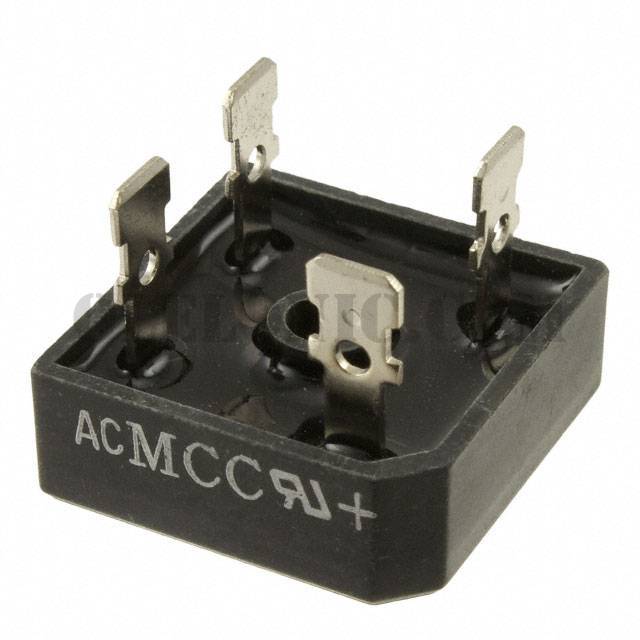

MP506-BP
