MMIX1X200N60B3H1
MMIX1X200N60B3H1

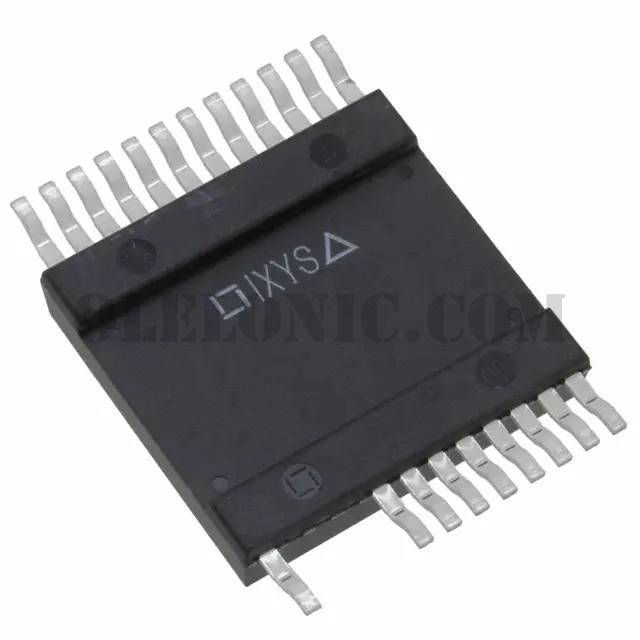

Part Number MMIX1X200N60B3H1 Manufacturer IXYS Description IGBT 600V 175A 520W SMPD Package / Case 24-PowerSMD, 21 LeadsUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 175A 520W Surface Mount 24-SMPD
To learn about the specification of MMIX1X200N60B3H1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMIX1X200N60B3H1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMIX1X200N60B3H1.
We are offering MMIX1X200N60B3H1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
MMIX1X200N60B3H1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet MMIX1X200N60B3H1 Standard Package 20 Manufacturer IXYS Series GenX3™, XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 175A Current - Collector Pulsed (Icm) 1000A Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 100A Power - Max 520W Switching Energy 2.85mJ (on), 2.9mJ (off) Input Type Standard Gate Charge 315nC Td (on/off) @ 25°C 48ns/160ns Test Condition 360V, 100A, 1Ohm, 15V Reverse Recovery Time (trr) 100ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Package / Case 24-PowerSMD, 21 Leads Supplier Device Package 24-SMPD Base Part Number IXG*200N60
