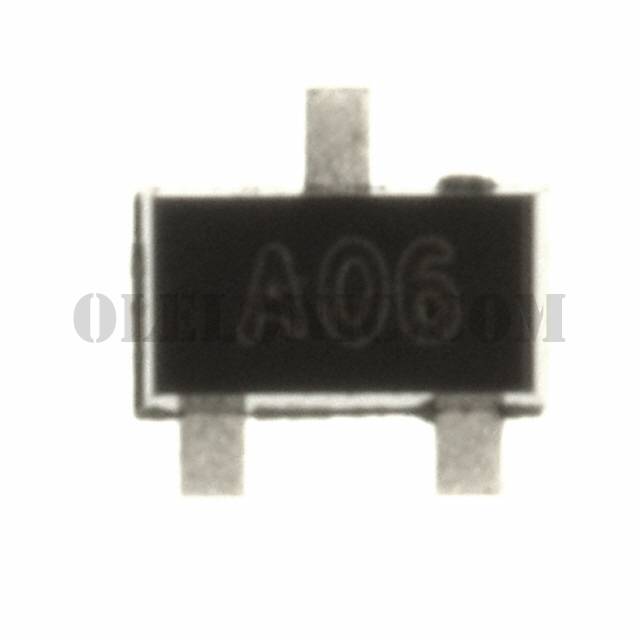

MMBT3906T

MMBT3906T

Part NumberMMBT3906T

ManufacturerON Semiconductor

DescriptionTRANS PNP 40V 0.2A SOT-523F

DatasheetMMBT3906T Datasheet

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 40V 200mA 250MHz 250mW Surface Mount SOT-523F

To learn about the specification of MMBT3906T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMBT3906T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMBT3906T.
We are offering MMBT3906T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMBT3906T - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MMBT3906T Datasheet
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	200mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	400mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Power - Max	250mW
Frequency - Transition	250MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-89, SOT-490
Supplier Device Package	SOT-523F
Base Part Number	MMBT3906
