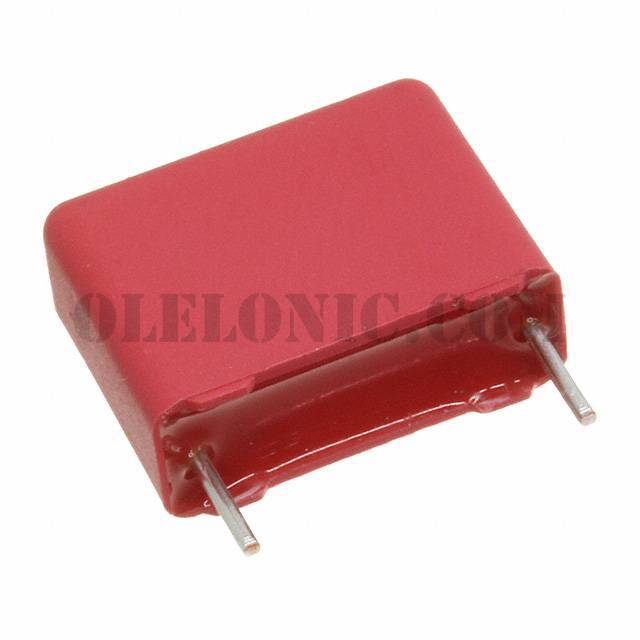

Categories	Capacitors / Film Capacitors
Datasheet	WIMA MKP 10
Standard Package	1600
Manufacturer	WIMA
Series	-
Packaging	Bulk
Part Status	Active
Capacitance	6800pF
Tolerance	±10%
Voltage Rating - AC	700V
Voltage Rating - DC	2500V (2.5kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.276" W (18.00mm x 7.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Pulse, DV/DT
Ratings	-
Features	-

MKP1U023305F00JSSD	WIMA, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1U024706B00MSSD	WIMA, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1U024706B00JSSD	WIMA, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1U016804C00MSSD	WIMA, 6800pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1U032206I00KSSD	WIMA, 0.22µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1U031006D00KSSD	WIMA, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1J041006G00KSSD	WIMA, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View
MKP1J031005D00JSSD	WIMA, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View
MKP1F034704J00KSSD	WIMA, 0.47µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial,	View
MKP1F042206F00KSSD	WIMA, 2.2µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial,	View
MKP1U026805I00KSSD	WIMA, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1V011504B00KSSD	WIMA, 1500pF Film Capacitor 700V 2500V (2.5kV) Polypropylene (PP), Metallized Radial,	View

MKP1V016804D00KSSD

Part NumberMKP1V016804D00KSSD
