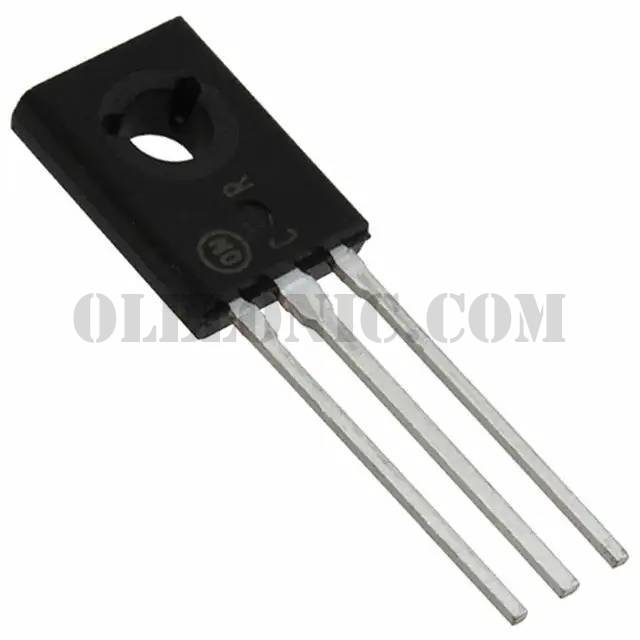

MJE702G

MJE702G

Part NumberMJE702G

ManufacturerON Semiconductor

DescriptionTRANS PNP DARL 80V 4A TO225AA

DatasheetMJE700-703,800-803

Package / CaseTO-225AA, TO-126-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 80V 4A 40W Through Hole TO-225AA

To learn about the specification of MJE702G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MJE702G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MJE702G.
We are offering MJE702G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MJE702G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MJE700-703,800-803
Standard Package	500
Manufacturer	ON Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	4A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max)	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	750 @ 1.5A, 3V
Power - Max	40W
Frequency - Transition	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	TO-225AA
Base Part Number	MJE702
