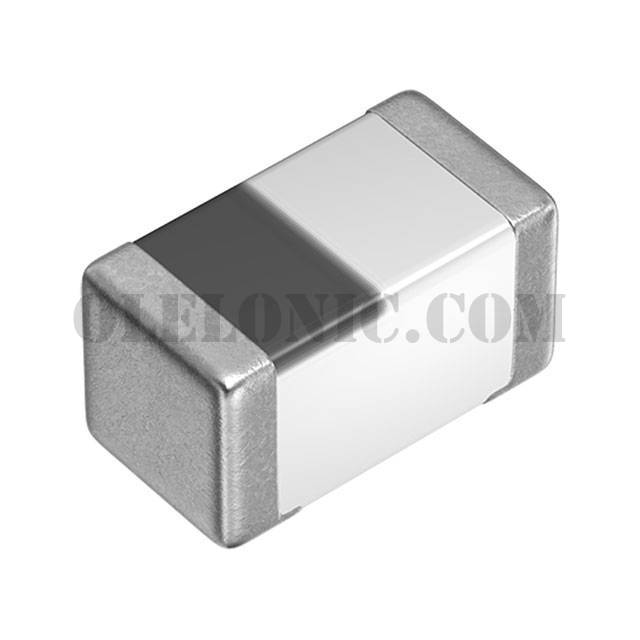

MHQ0603P3N6BTD25

Part NumberMHQ0603P3N6BTD25

To learn about the specification of MHQ0603P3N6BTD25, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MHQ0603P3N6BTD25 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MHQ0603P3N6BTD25.
We are offering MHQ0603P3N6BTD25 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MHQ0603P Series, Commercial
Standard Package	1
Manufacturer	TDK Corporation
Series	MHQ-P
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Ceramic, Non-Magnetic
Inductance	3.6nH
Tolerance	±0.1nH
Current Rating (Amps)	500mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	250mOhm Max
Q @ Freq	16 @ 500MHz
Frequency - Self Resonant	6.5GHz
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	500MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.026" L x 0.014" W (0.65mm x 0.35mm)
Height - Seated (Max)	0.016" (0.40mm)
