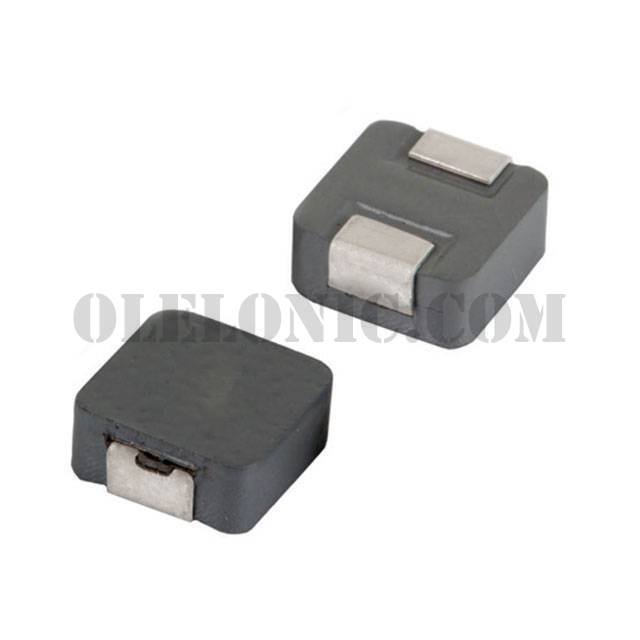

MGV0402R10M-10

Part NumberMGV0402R10M-10

ManufacturerLaird-Signal Integrity Products

DescriptionFIXED IND 100NH 12A 4 MOHM SMD

DatasheetMGV0402R10M-10 Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100nH Shielded Molded Inductor 12A 4mOhm Max Nonstandard

To learn about the specification of MGV0402R10M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MGV0402R10M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MGV0402R10M-10.
We are offering MGV0402R10M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MGV0402R10M-10 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

MGV0402R10M-10 Drawing

Standard Package

3500

Manufacturer

Laird-Signal Integrity Products

Series

MGV

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Molded

Material - Core

Inductance

100nH

Tolerance

±20%

Current Rating (Amps)

12A

Current - Saturation

22A

Shielding

Shielded

DC Resistance (DCR)

4mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.177" L x 0.161" W (4.50mm x 4.10mm)

Height - Seated (Max)

0.091" (2.30mm)
