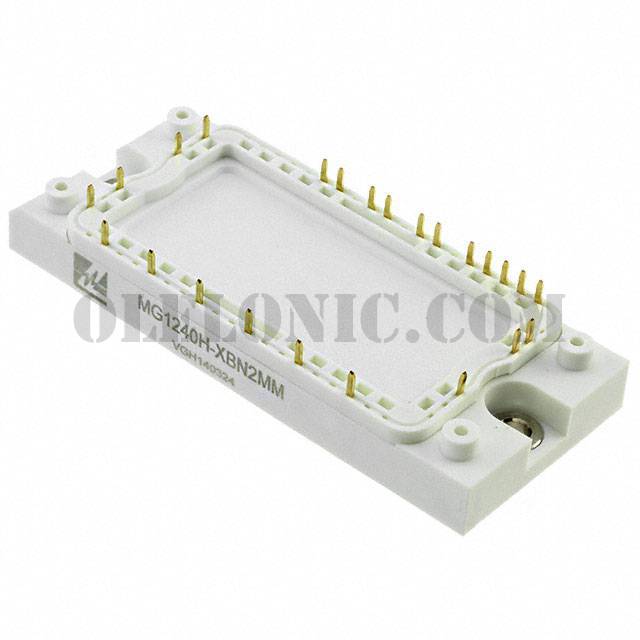

MG1240H-XBN2MM

Part NumberMG1240H-XBN2MM

ManufacturerLittelfuse Inc.

DescriptionIGBT MOD 1200V 40A PKG H CRCT:XB

DatasheetMG1240H-XBN2MM

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Three Phase Inverter with Brake 1200V 25A 105W Chassis Mount Module

To learn about the specification of MG1240H-XBN2MM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MG1240H-XBN2MM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MG1240H-XBN2MM.
We are offering MG1240H-XBN2MM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MG1240H-XBN2MM - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

MG1240H-XBN2MM

Standard Package

Manufacturer

Littelfuse Inc.

Series

Part Status

Active

IGBT Type

Configuration

Three Phase Inverter with Brake

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

25A

Power - Max

105W

Vce(on) (Max) @ Vge, Ic

1.8V @ 15V, 40A

Current - Collector Cutoff (Max)

50µA

Input Capacitance (Cies) @ Vce

1.1nF @ 25V

Input

Three Phase Bridge Rectifier

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
