Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MDPK5050T100MM View all Specification
Standard Package	1000
Manufacturer	Taiyo Yuden
Series	MCOIL™, MD
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Metal
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	1.7A
Current - Saturation	2.2A
Shielding	Shielded
DC Resistance (DCR)	225mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)	0.055" (1.40mm)

MDMK2020T1R0MM	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.9A 64mOhm Max Nonstandard, MCOIL™, MD	View
MDPK5050T4R7MM	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2.5A 102mOhm Max Nonstandard, MCOIL™, MD	View
MDMK2020T1R5MMV	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 86mOhm Max Nonstandard, MCOIL™, MD	View
MDMK3030TR47MM	Taiyo Yuden, 470nH Shielded Wirewound Inductor 4.2A 27mOhm Max Nonstandard, MCOIL™, MD	View
MDJE4040T2R2MM	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2.7A 115mOhm Max Nonstandard, MCOIL™, MD	View
MDMK4040T6R8MM	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 1.6A 230mOhm Max Nonstandard, MCOIL™, MD	View
MDMK4040T1R0MF	Taiyo Yuden, 1µH Shielded Wirewound Inductor 3.5A 47mOhm Max Nonstandard, MCOIL™, MD	View
MDPK5050T6R8MM	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 2.2A 138mOhm Max Nonstandard, MCOIL™, MD	View
MDJE4040T2R2MM	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2.7A 115mOhm Max Nonstandard, MCOIL™, MD	View
MDMK4040T4R7MM	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.9A 160mOhm Max Nonstandard, MCOIL™, MD	View
MDWK4040T3R3MM	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 3A 75mOhm Max Nonstandard, MCOIL™, MD	View
MDWK4040T2R2MMV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 3.5A 54mOhm Max Nonstandard, MCOIL™, MD	View

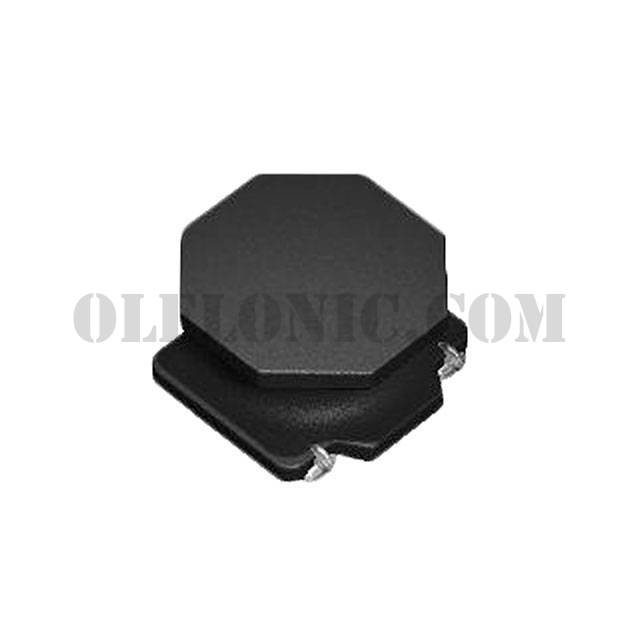

MDPK5050T100MM
