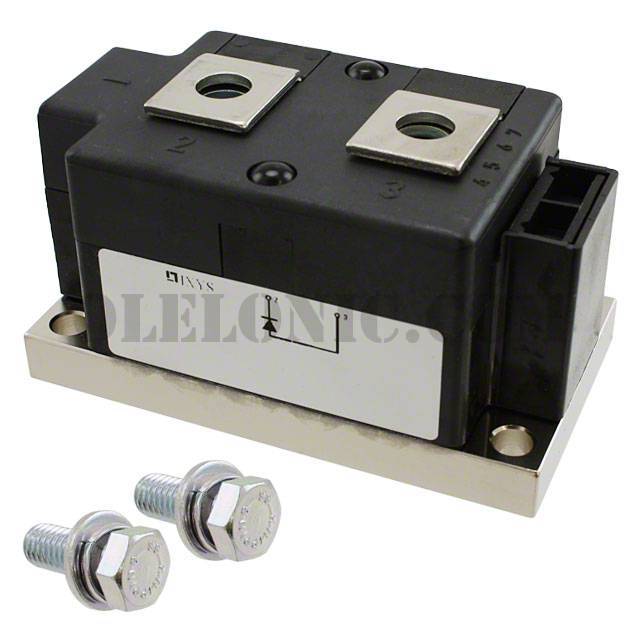

MDO500-22N1
MDO500-22N1
Part Number MDO500-22N1
Manufacturer IXYS
Description DIODE GEN PURP 2.2KV 560A Y1-CU
Package / Case Y1-CU
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Diode Standard 2200V 560A Chassis Mount Y1-CU
To learn about the specification of MDO500-22N1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MDO500-22N1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MDO500-22N1.
We are offering MDO500-22N1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
MDO500-22N1 - Product Attributes
Categories
Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet MDO500
Standard Package 3
Manufacturer IXYS
Series -
Packaging Bulk
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 2200V
Current - Average Rectified (Io) 560A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1200A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 30mA @ 2200V
Capacitance @ Vr, F 576pF @ 700V, 1MHz
Mounting Type Chassis Mount
Package / Case Y1-CU
Supplier Device Package Y1-CU
Base Part Number MD*500
