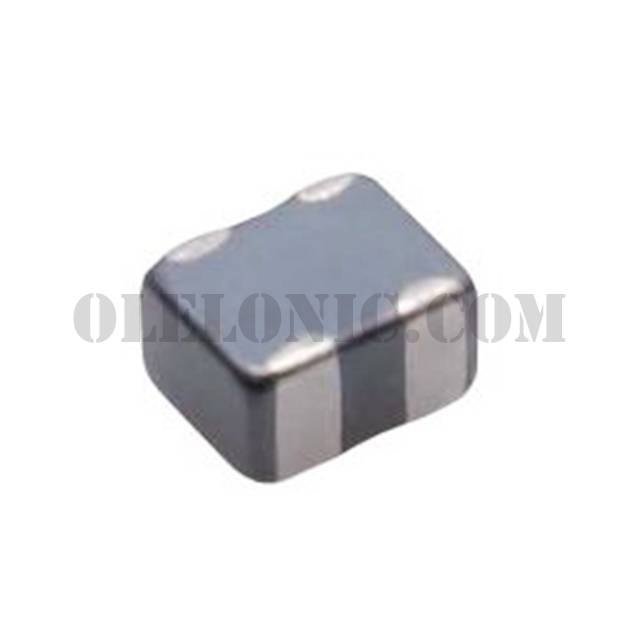

MCZ1210CH240L2TA0G

Part NumberMCZ1210CH240L2TA0G

ManufacturerTDK Corporation

DescriptionCMC 100MA 2LN 24 OHM SMD

DatasheetMCZ1210CH Series Datasheet

Package / Case0504 (1210 Metric), 4 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 24 Ohms @ 100MHz 100mA DCR 1Ohm

To learn about the specification of MCZ1210CH240L2TA0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCZ1210CH240L2TA0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCZ1210CH240L2TA0G.
We are offering MCZ1210CH240L2TA0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCZ1210CH240L2TA0G - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

MCZ1210CH Series Datasheet

Standard Package

4000

Manufacturer

TDK Corporation

Series

MCZ-CH

Packaging

Tape & Reel (TR)

Part Status

Active

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

24 Ohms @ 100MHz

Current Rating (Max)

100mA

DC Resistance (DCR) (Max)

1Ohm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.049" L x 0.039" W (1.25mm x 1.00mm)

Height (Max)

0.024" (0.60mm)

Package / Case

0504 (1210 Metric), 4 Lead
