MCP87090T-U/LC

Part NumberMCP87090T-U/LC

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 25V 8PDFN

DatasheetMCP87090

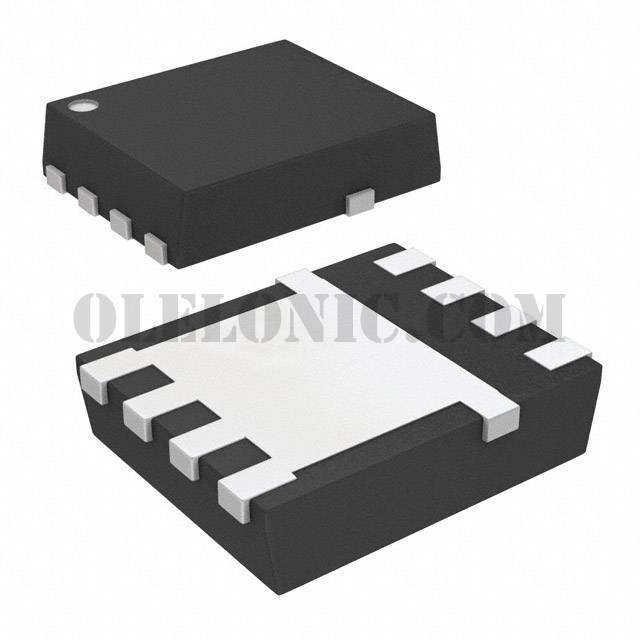

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 48A (Tc) 1.8W (Ta) Surface Mount 8-PDFN (3x3)

To learn about the specification of MCP87090T-U/LC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCP87090T-U/LC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCP87090T-U/LC.
We are offering MCP87090T-U/LC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCP87090T-U/LC - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

MCP87090

Standard Package

Manufacturer

Microchip Technology

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

25V

Current - Continuous Drain (Id) @ 25°C

48A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

10.5mOhm @ 10V

Vgs(th) (Max) @ Id

1.7V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

10nC @ 4.5V

Vgs (Max)

+10V, -8V

Input Capacitance (Ciss) (Max) @ Vds

580pF @ 12.5V

FET Feature

Power Dissipation (Max)

1.8W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-PDFN (3x3)

Package / Case

8-PowerTDFN

Base Part Number
