MCP07N65-BP

MCP07N65-BP

Part NumberMCP07N65-BP

ManufacturerMicro Commercial Co

DescriptionN-CHANNEL MOSFET, TO-220AB(H) PA

DatasheetMCP07N65

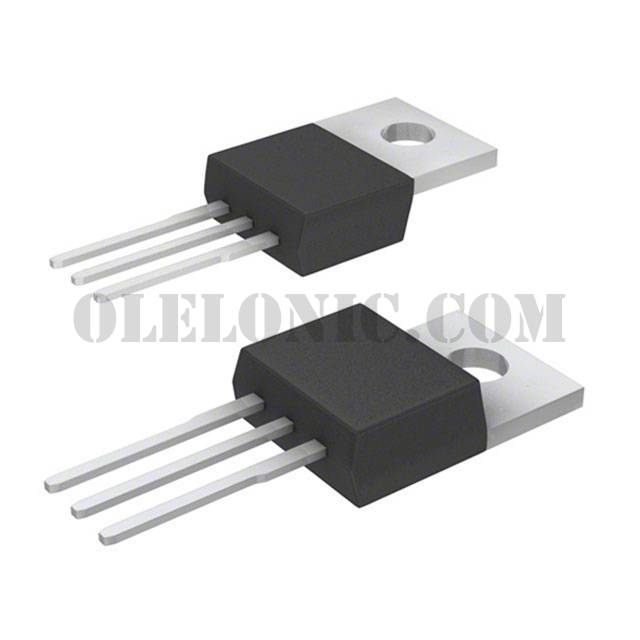

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 7A Through Hole TO-220AB

To learn about the specification of MCP07N65-BP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCP07N65-BP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCP07N65-BP.
We are offering MCP07N65-BP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCP07N65-BP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MCP07N65
Standard Package	5000
Manufacturer	Micro Commercial Co
Series	-
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	7A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	26nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1600pF @ 25V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
