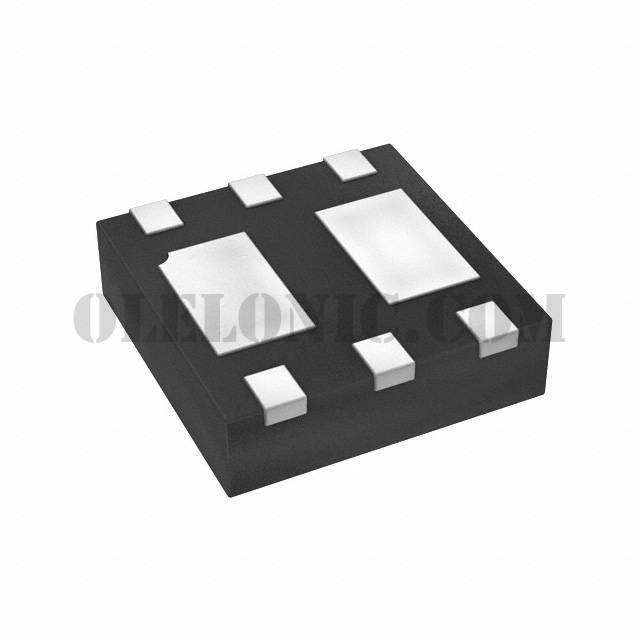

MCMNP517-TP


MCMNP517-TP

Part NumberMCMNP517-TP

Manufacturer

Description

Datasheet

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

MCMNP517-TP - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package3000
ManufacturerMicro Commercial Co
Series-
PackagingTape & Reel (TR)
Part StatusLast Time Buy
FET TypeN and P-Channel
FET FeatureLogic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C6A, 4.1A
Rds On (Max) @ Id, Vgs24mOhm @ 6A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds630pF @ 10V
Power - Max-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device PackageDFN2020-6U
