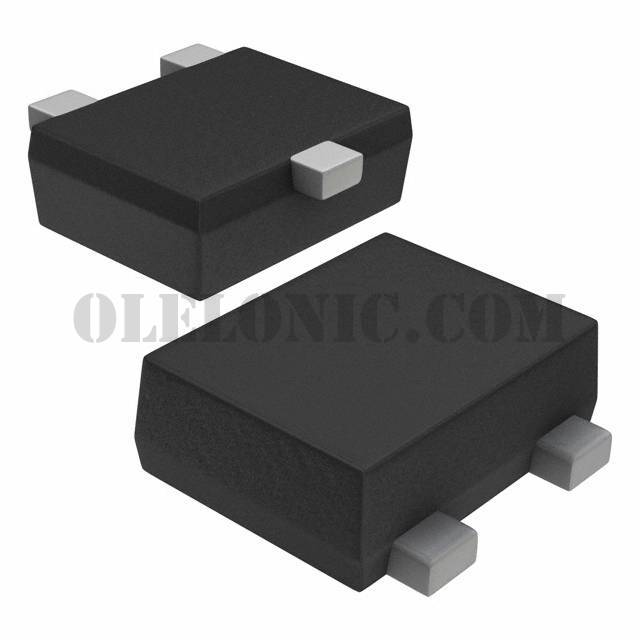

MCH3245-TL-E

MCH3245-TL-E

Part NumberMCH3245-TL-E

ManufacturerON Semiconductor

DescriptionTRANS NPN 50V 2A MCPH3

DatasheetMCH3145,3245

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 2A 420MHz 800mW Surface Mount 3-MCPH

To learn about the specification of MCH3245-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCH3245-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCH3245-TL-E.
We are offering MCH3245-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCH3245-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MCH3145,3245
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	2A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	260mV @ 50mA, 1A
Current - Collector Cutoff (Max)	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V
Power - Max	800mW
Frequency - Transition	420MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	3-MCPH
