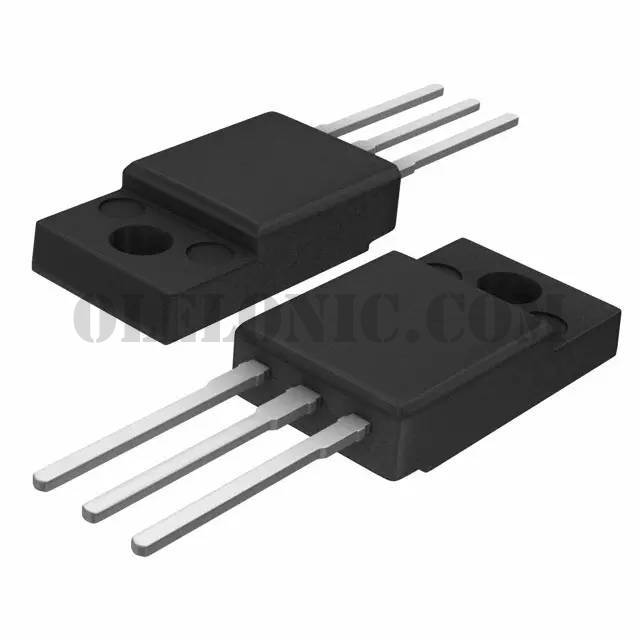

MBRF30L45CTG

Part NumberMBRF30L45CTG

ManufacturerON Semiconductor

DescriptionDIODE ARRAY SCHOTTKY 45V TO220FP

DatasheetMBR(F)30L45CTG

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 45V 15A Through Hole TO-220-3 Full Pack

To learn about the specification of MBRF30L45CTG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MBRF30L45CTG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MBRF30L45CTG.
We are offering MBRF30L45CTG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MBRF30L45CTG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	MBR(F)30L45CTG
Standard Package	50
Manufacturer	ON Semiconductor
Series	SWITCHMODE™
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	15A
Voltage - Forward (Vf) (Max) @ If	500mV @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	650µA @ 45V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220FP
