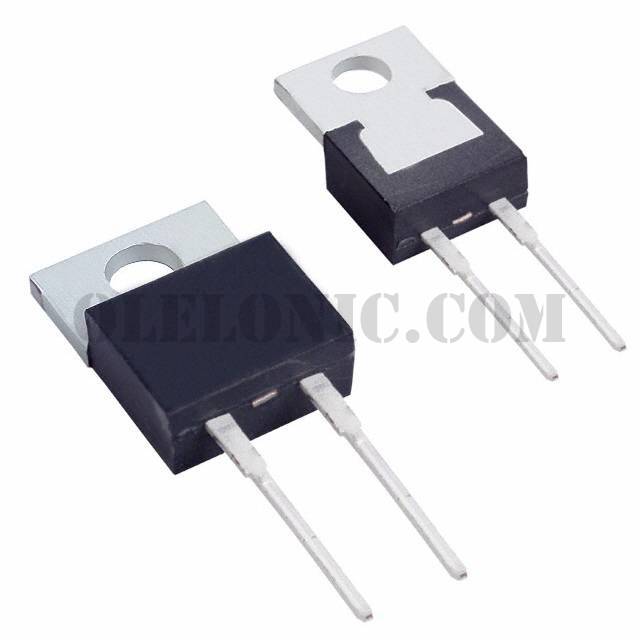

MBR745G

MBR745G

Part NumberMBR745G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 45V 7.5A TO220-2

DatasheetMBR735, MBR745

Package / CaseTO-220-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 45V 7.5A Through Hole TO-220-2

To learn about the specification of MBR745G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MBR745G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MBR745G.
We are offering MBR745G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MBR745G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MBR735, MBR745
Standard Package	50
Manufacturer	ON Semiconductor
Series	SWITCHMODE™
Packaging	Tube
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	7.5A
Voltage - Forward (Vf) (Max) @ If	840mV @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 45V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220-2
Operating Temperature - Junction	-65°C ~ 175°C
Base Part Number	MBR745
