MBR1060CTL


MBR1060CTL

Part NumberMBR1060CTL

Manufacturer

Description

Datasheet

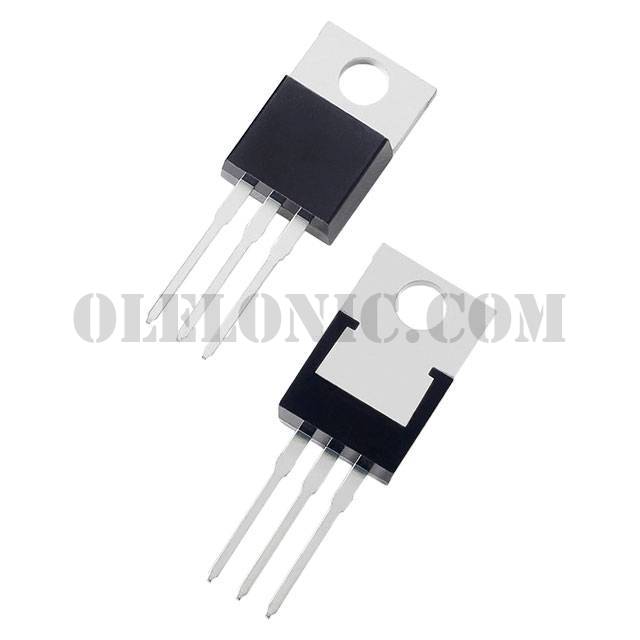

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

MBR1060CTL - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet
Standard Package1000
ManufacturerLittelfuse Inc.
SeriesMBR
PackagingTube
Part StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)60V
Current - Average Rectified (Io) (per Diode)5A
Voltage - Forward (Vf) (Max) @ If600mV @ 5A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr1mA @ 60V
Operating Temperature - Junction-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
