Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers

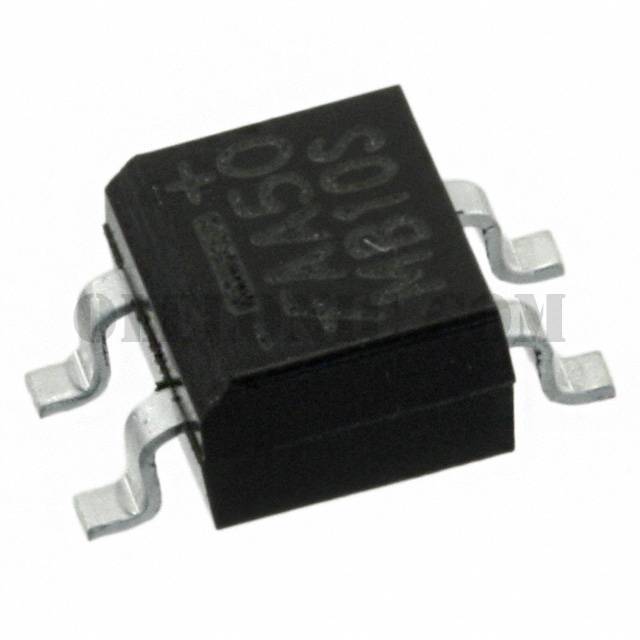

Datasheet	MB10S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 500mA
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	4-SOIC
Base Part Number	MB10

CBRHD-02 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-HD DIP,	View
MBS10 RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS,	View
LMB8S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Surface Mount LMBS-1,	View
DF06S	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-SDIP,	View
KMB220STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 200V Surface Mount MBS,	View
UABF1510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
CDBHM260L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 60V Surface Mount MBS-2,	View
MB8S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Surface Mount MBS-1,	View
Z4GP210L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS(Z4),	View
B10S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS,	View
DF005S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V Surface Mount DFS,	View
CD-HD01	Bourns Inc., Bridge Rectifier Single Phase Schottky 100V Surface Mount,	View

MB10S

Part NumberMB10S
