Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	MADP-0xx015-1314
Standard Package	100
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	PIN - Single
Voltage - Peak Reverse (Max)	115V
Current - Max	500mA
Capacitance @ Vr, F	0.38pF @ 40V, 1MHz
Resistance @ If, F	720mOhm @ 10mA, 1GHz
Operating Temperature	175°C (TJ)

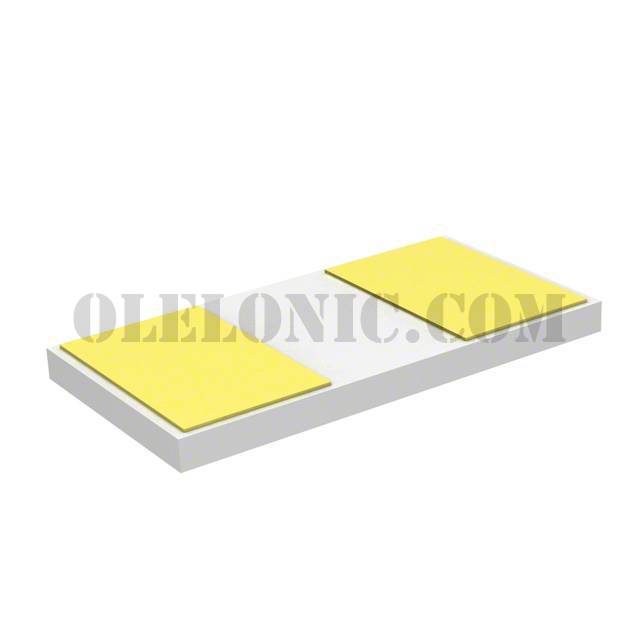

Package / Case	2-SMD, No Lead
Supplier Device Package	-
