Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	MADP-011104
Standard Package	1
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	PIN - Single
Voltage - Peak Reverse (Max)	800V
Current - Max	250mA
Capacitance @ Vr, F	0.45pF @ 40V, 15MHz
Resistance @ If, F	2.2Ohm @ 10mA, 3GHz
Operating Temperature	175°C (TJ)

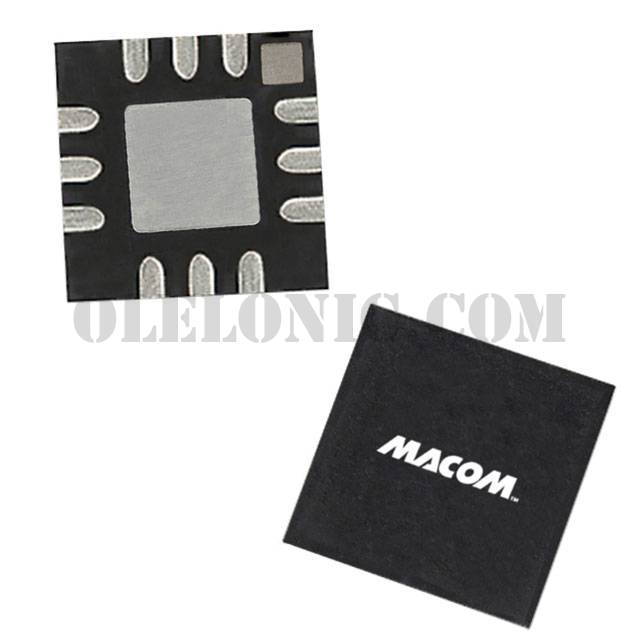

Package / Case	12-TFQFN Exposed Pad
Supplier Device Package	12-PQFN (3x3)
