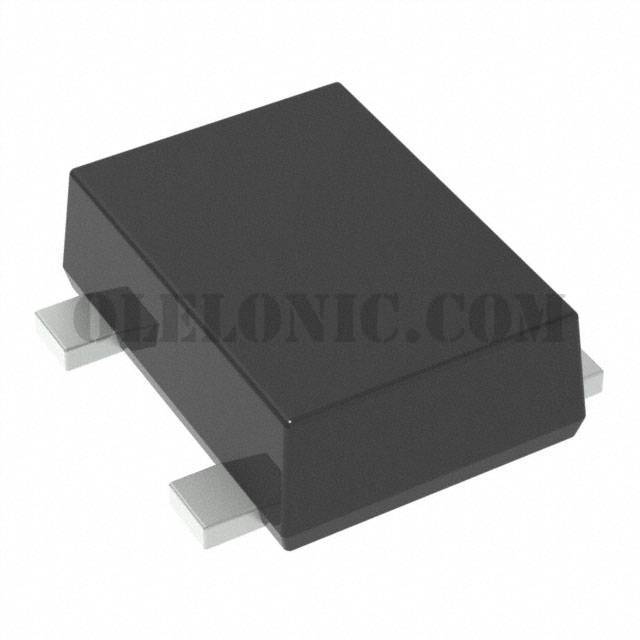

MA4Z71300L

Part NumberMA4Z71300L

ManufacturerPanasonic Electronic Components

DescriptionDIODE ARRAY SCHOTTKY 30V SMINI4

DatasheetMA4Z713

Package / Case4-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 30V 150mA (DC) Surface Mount 4-SMD, Flat Leads

To learn about the specification of MA4Z71300L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MA4Z71300L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MA4Z71300L.
We are offering MA4Z71300L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MA4Z71300L - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

MA4Z713

Standard Package

3000

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Diode Configuration

2 Independent

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io) (per Diode)

150mA (DC)

Voltage - Forward (Vf) (Max) @ If

1V @ 30mA

Speed

Small Signal =< 200mA (Io), Any Speed

Reverse Recovery Time (trr)

1ns

Current - Reverse Leakage @ Vr

1µA @ 30V

Operating Temperature - Junction

125°C (Max)

Mounting Type

Surface Mount

Package / Case

4-SMD, Flat Leads

Supplier Device Package

SMini4-F1

Base Part Number
