Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	MA4L & MADL Series
Standard Package	100
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	PIN - Single
Voltage - Peak Reverse (Max)	50V
Current - Max	100mA
Capacitance @ Vr, F	0.15pF @ 0V, 1MHz
Resistance @ If, F	2.5Ohm @ 10mA, 500MHz
Operating Temperature	-55°C ~ 125°C (TJ)

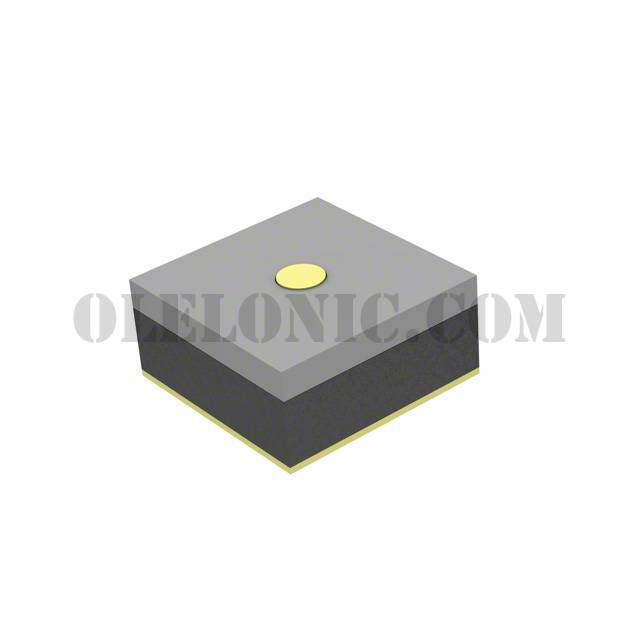

Package / Case	Die
Supplier Device Package	Chip

MADP-011104-TR0500	M/A-Com Technology Solutions, RF Diode PIN - Single 800V 250mA 12-PQFN (3x3),	View
MA4P505-1072T	M/A-Com Technology Solutions, RF Diode PIN - Single 500V 15W,	View
SKY16601-555LF	Skyworks Solutions Inc., RF Diode PIN - Single 45V 1.5A 1W 2-MLP (2.5x2.5),	View
MADL-011008-14120T	M/A-Com Technology Solutions, RF Diode PIN - Single 6-DFN (1.6x1.2),	View
SMP1331-085LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 200mA 2.5W 3-QFN (2x2),	View
SMP1345-040LF	Skyworks Solutions Inc., RF Diode PIN - Single 50V 150mA 750mW 0402,	View
SMP1304-085LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 1.5A 2.5W 3-QFN (2x2),	View
SMP1340-007LF	Skyworks Solutions Inc., RF Diode PIN - Single 50V 250mW SOT-23-3,	View
GA01PNS150-220	GeneSiC Semiconductor, RF Diode PIN - Single 15000V 1A,	View
SMP1331-087LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 200mA 750mW 2-QFN (2x2),	View
MA47222	M/A-Com Technology Solutions, RF Diode PIN - Single 150V Module,	View
SMP1307-027LF	Skyworks Solutions Inc., RF Diode PIN - 2 Pair CA + CC 200V 250mW SOT-5,	View

MA4L032-134

Part NumberMA4L032-134
