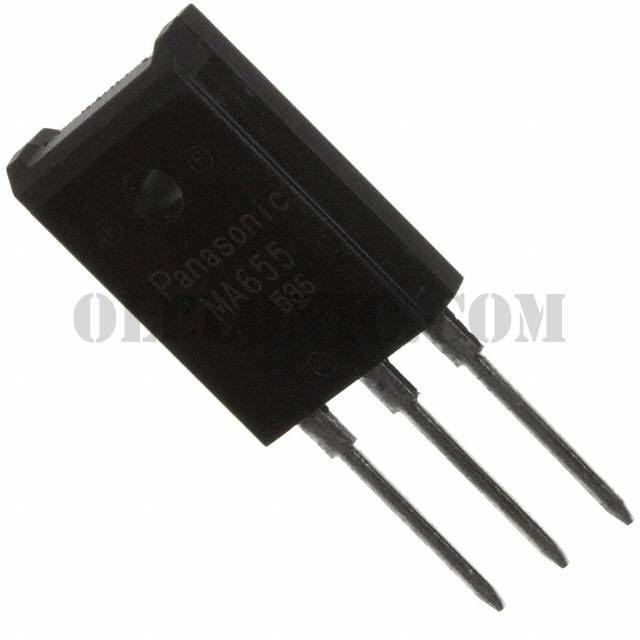

MA3G655

Part NumberMA3G655

ManufacturerPanasonic Electronic Components

DescriptionDIODE ARRAY GP 300V 20A TO3F-A1

DatasheetMA3G655 Datasheet

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 300V 20A Through Hole TOP-3F

To learn about the specification of MA3G655, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MA3G655 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MA3G655.
We are offering MA3G655 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MA3G655 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

MA3G655 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Diode Configuration

1 Pair Common Cathode

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

300V

Current - Average Rectified (Io) (per Diode)

20A

Voltage - Forward (Vf) (Max) @ If

1V @ 10A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

50ns

Current - Reverse Leakage @ Vr

20µA @ 300V

Operating Temperature - Junction

-40°C ~ 150°C

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TO-3F-A1
