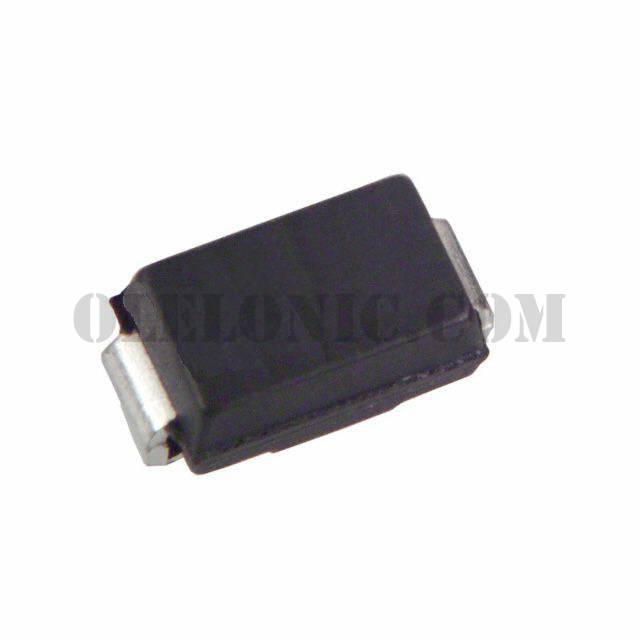

MA2Q70500L

Part NumberMA2Q70500L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 30V 1.5A NMINIP2

DatasheetMA2Q705 Datasheet

Package / CaseDO-214BA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1.5A Surface Mount NMiniP2-J1

To learn about the specification of MA2Q70500L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MA2Q70500L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MA2Q70500L.
We are offering MA2Q70500L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MA2Q70500L - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

MA2Q705 Datasheet

Standard Package

1500

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io)

1.5A

Voltage - Forward (Vf) (Max) @ If

370mV @ 1A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

50ns

Current - Reverse Leakage @ Vr

3mA @ 30V

Capacitance @ Vr, F

90pF @ 10V, 1MHz

Mounting Type

Surface Mount

Package / Case

DO-214BA

Supplier Device Package

NMiniP2-J1

Operating Temperature - Junction

-40°C ~ 125°C

Base Part Number

MA2Q705
