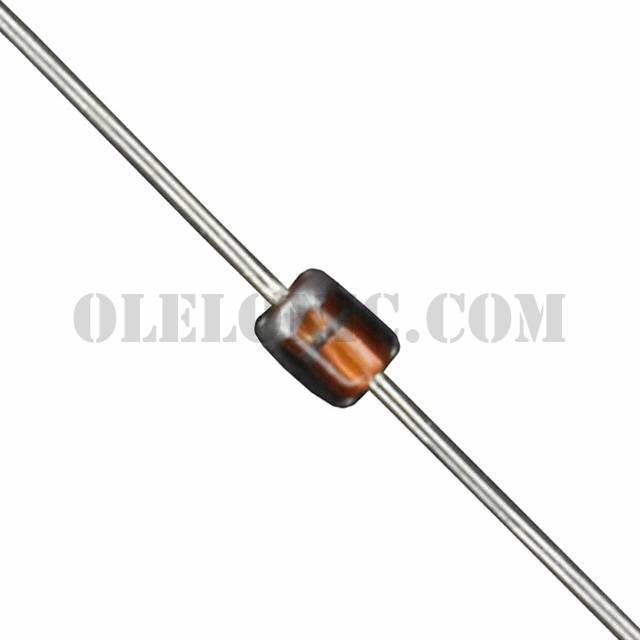

MA2C70000F

Part NumberMA2C70000F

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 15V 30MA DO34

DatasheetMA2C700(A) Datasheet

Package / CaseDO-204AG, DO-34, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 15V 30mA (DC) Through Hole DO34-A1

To learn about the specification of MA2C70000F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MA2C70000F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MA2C70000F.
We are offering MA2C70000F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MA2C70000F - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

MA2C700(A) Datasheet

Standard Package

2000

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Box (TB)

Part Status

Obsolete

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

15V

Current - Average Rectified (Io)

30mA (DC)

Voltage - Forward (Vf) (Max) @ If

1V @ 30mA

Speed

Small Signal =< 200mA (Io), Any Speed

Reverse Recovery Time (trr)

1ns

Current - Reverse Leakage @ Vr

100nA @ 15V

Capacitance @ Vr, F

1.3pF @ 1V, 1MHz

Mounting Type

Through Hole

Package / Case

DO-204AG, DO-34, Axial

Supplier Device Package

DO34-A1

Operating Temperature - Junction

125°C (Max)

Base Part Number

MA2C700
