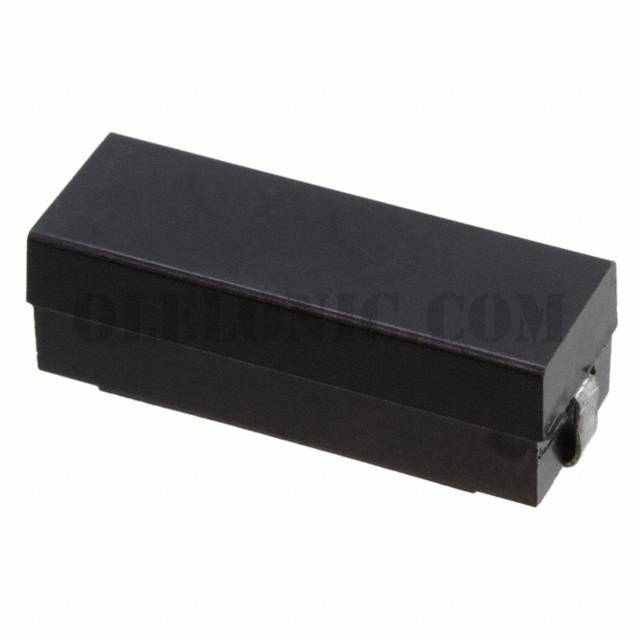

M27/370-01

M27/370-01

Part NumberM27/370-01

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 1UH 6.27A 9 MOHM SMD

DatasheetMIL8532 (MIL-PRF-27/370)

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Wirewound Inductor 6.27A 9mOhm Max Nonstandard

To learn about the specification of M27/370-01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add M27/370-01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of M27/370-01.
We are offering M27/370-01 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

M27/370-01 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MIL8532 (MIL-PRF-27/370)
Standard Package	480
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-27/370, MIL8532
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1µH
Tolerance	±15%
Current Rating (Amps)	6.27A
Current - Saturation	6.4A
Shielding	Unshielded
DC Resistance (DCR)	9mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 130°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max)	0.286" (7.26mm)
