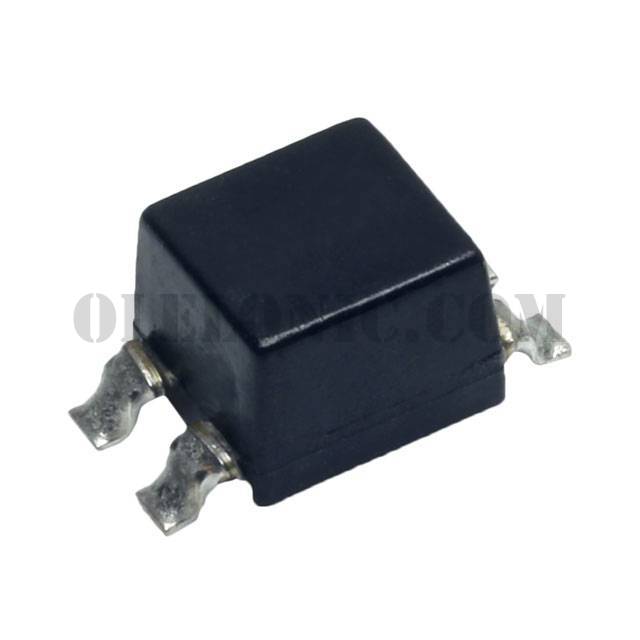

M-523CT

Part NumberM-523CT

ManufacturerKEMET

DescriptionCMC, SMD, 200OHM, 65MOHM

DatasheetM-500CT Series Datasheet

Package / CaseVertical, 4 Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description200µH @ 20MHz 2 Line Common Mode Choke Surface Mount 200 Ohms @ 20MHz 1.5A DCR

To learn about the specification of M-523CT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add M-523CT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of M-523CT.
We are offering M-523CT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

M-523CT - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

M-500CT Series Datasheet

Standard Package

1500

Manufacturer

KEMET

Series

M-500CT

Packaging

Tape & Reel (TR)

Part Status

Active

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

200 Ohms @ 20MHz

Inductance @ Frequency

200µH @ 20MHz

Current Rating (Max)

1.5A

Voltage Rating - DC

50V

Voltage Rating - AC

Operating Temperature

-25°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.197" L x 0.217" W (5.00mm x 5.50mm)

Height (Max)

0.165" (4.20mm)

Package / Case

Vertical, 4 Gull Wing
