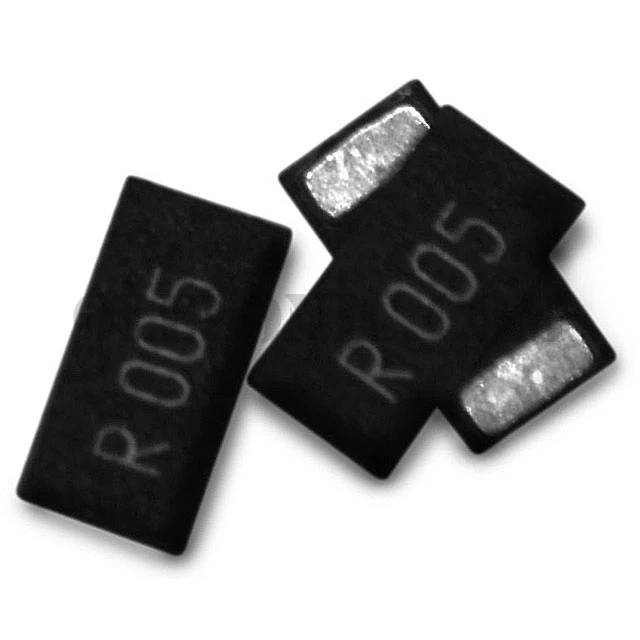

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	LVT Series Datasheet
Standard Package	10000
Manufacturer	Ohmite
Series	LVT
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	2.5 mOhms
Tolerance	±3%
Power (Watts)	0.333W, 1/3W
Composition	Metal Element
Features	Current Sense
Temperature Coefficient	±150ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max)	0.014" (0.35mm)
Number of Terminations	2

LVT04R0030GER	Ohmite, 3 mOhms ±2% 0.333W, 1/3W Chip Resistor 0402 (1005 Metric) Current Sense Metal Element, LVT	View
LVT06R0100FER	Ohmite, 10 mOhms ±1% 0.333W, 1/3W Chip Resistor 0603 (1608 Metric) Current Sense Metal Element, LVT	View
LVT06R0200FER	Ohmite, 20 mOhms ±1% 0.333W, 1/3W Chip Resistor 0603 (1608 Metric) Current Sense Metal Element, LVT	View
LVT08R0050FER	Ohmite, 5 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Current Sense Metal Element, LVT	View
LVT08R0150FER	Ohmite, 15 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Current Sense Metal Element, LVT	View
LVT04R0050FER	Ohmite, 5 mOhms ±1% 0.333W, 1/3W Chip Resistor 0402 (1005 Metric) Current Sense Metal Element, LVT	View
LVT08R0100FER	Ohmite, 10 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Current Sense Metal Element, LVT	View
LVT06R0030GER	Ohmite, 3 mOhms ±2% 0.333W, 1/3W Chip Resistor 0603 (1608 Metric) Current Sense Metal Element, LVT	View
LVT04R0150FER	Ohmite, 15 mOhms ±1% 0.333W, 1/3W Chip Resistor 0402 (1005 Metric) Current Sense Metal Element, LVT	View
LVT08R0050FER	Ohmite, 5 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Current Sense Metal Element, LVT	View
LVT12R0200FER	Ohmite, 20 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense Metal Element, LVT	View
LVT12R0200FER	Ohmite, 20 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense Metal Element, LVT	View

LVT04R0025HER

Part NumberLVT04R0025HER
