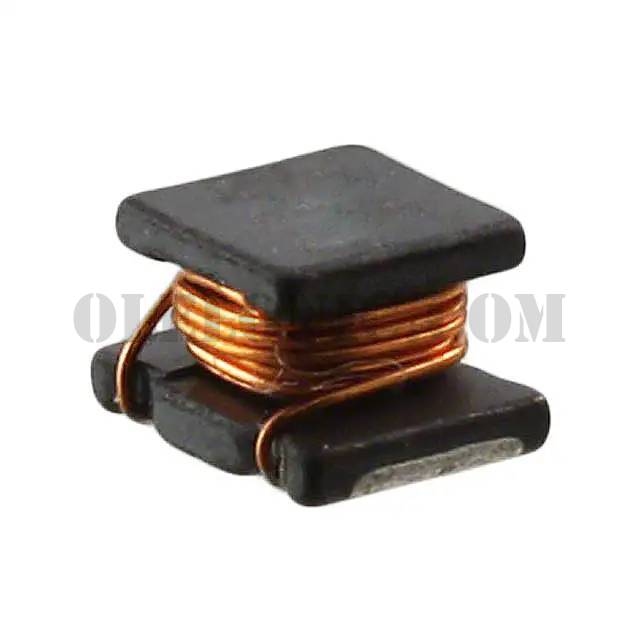

LQW31HN23NJ03L
LQW31HN23NJ03L
Part Number LQW31HN23NJ03L
Description FIXED IND 23NH 590MA 46 MOHM SMD
Package / Case 1206 (3216 Metric)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 23nH Unshielded Wirewound Inductor 590mA 46mOhm Max 1206 (3216 Metric)
To learn about the specification of LQW31HN23NJ03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW31HN23NJ03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW31HN23NJ03L.
We are offering LQW31HN23NJ03L for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
LQW31HN23NJ03L - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet LQW31HNyyyy03L Spec
Standard Package 1
Manufacturer Murata Electronics North America
Series LQW31
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Non-Magnetic
Inductance 23nH
Tolerance ±5%
Current Rating (Amps) 590mA
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 46mOhm Max
Q @ Freq 60 @ 436MHz
Frequency - Self Resonant 1GHz
Ratings -
Operating Temperature -40°C ~ 85°C
Inductance Frequency - Test 100MHz
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.079" (2.00mm)
