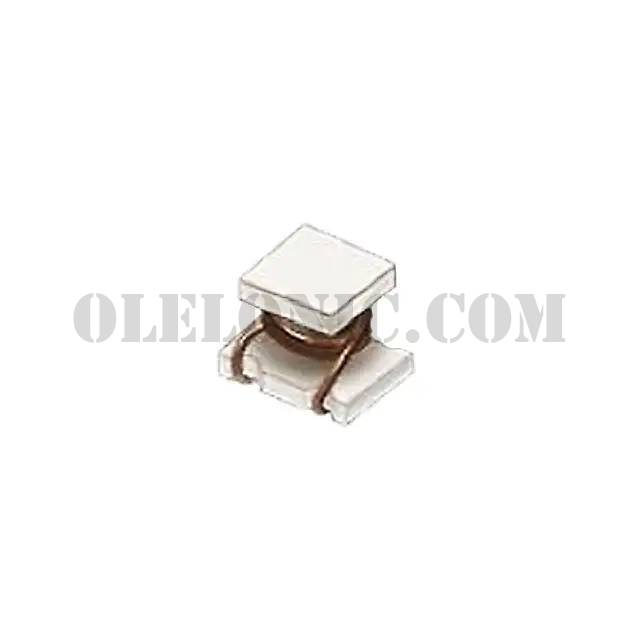

LQW2BHN22NJ03L

Part NumberLQW2BHN22NJ03L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 22NH 720MA 90 MOHM SMD

DatasheetChip Inductors Catalog

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22nH Unshielded Wirewound Inductor 720mA 90mOhm Max Nonstandard

To learn about the specification of LQW2BHN22NJ03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW2BHN22NJ03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW2BHN22NJ03L.
We are offering LQW2BHN22NJ03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW2BHN22NJ03L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Chip Inductors Catalog
Standard Package	2000
Manufacturer	Murata Electronics North America
Series	LQW2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	22nH
Tolerance	±5%
Current Rating (Amps)	720mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	90mOhm Max
Q @ Freq	30 @ 250MHz
Frequency - Self Resonant	2.1GHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	100MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.059" W (2.00mm x 1.50mm)
Height - Seated (Max)	0.070" (1.78mm)
