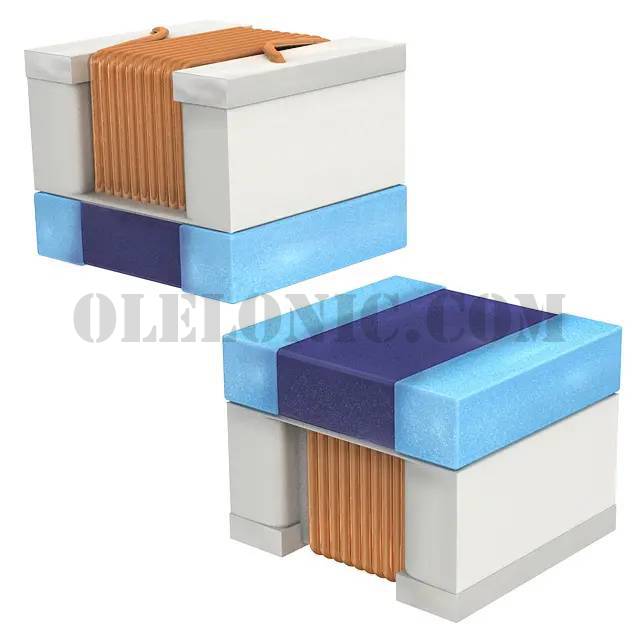

LQW2BAS12NG00L

Part NumberLQW2BAS12NG00L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 12NH 600MA 150 MOHM

DatasheetLQW2BASyyyy00L Ref Spec

Package / Case0805 (2015 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description12nH Unshielded Wirewound Inductor 600mA 150mOhm Max 0805 (2015 Metric)

To learn about the specification of LQW2BAS12NG00L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW2BAS12NG00L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW2BAS12NG00L.
We are offering LQW2BAS12NG00L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW2BAS12NG00L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQW2BASyyyy00L Ref Spec
Standard Package	2000
Manufacturer	Murata Electronics North America
Series	LQW2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	12nH
Tolerance	±2%
Current Rating (Amps)	600mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	150mOhm Max
Q @ Freq	50 @ 500MHz
Frequency - Self Resonant	4GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	250MHz
Mounting Type	Surface Mount
Package / Case	0805 (2015 Metric)
Supplier Device Package	-
Size / Dimension	0.082" L x 0.060" W (2.09mm x 1.53mm)
Height - Seated (Max)	0.060" (1.52mm)
