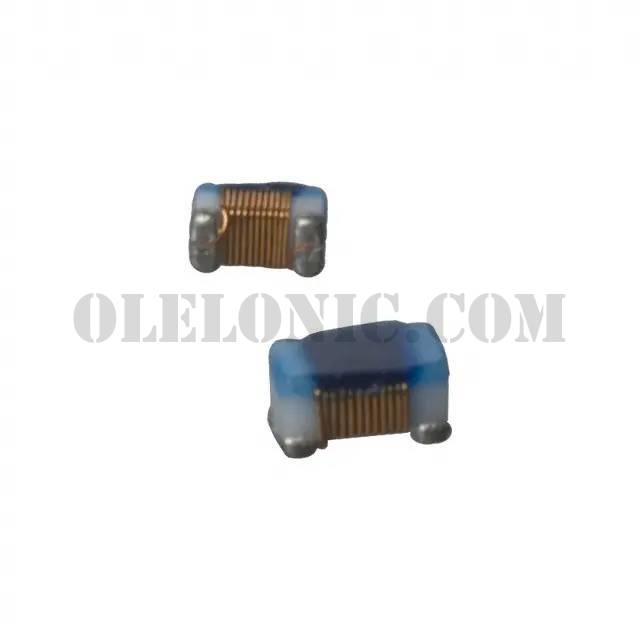

LQW15CA1R0K00D

Part NumberLQW15CA1R0K00D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 1UH 180MA 2.2 OHM SMD

DatasheetLQW15CA Series Specification

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Wirewound Inductor 180mA 2.2Ohm Max Nonstandard

To learn about the specification of LQW15CA1R0K00D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW15CA1R0K00D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW15CA1R0K00D.
We are offering LQW15CA1R0K00D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW15CA1R0K00D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQW15CA Series Specification
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQW15
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1µH
Tolerance	±10%
Current Rating (Amps)	180mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	2.2Ohm Max
Q @ Freq	-
Frequency - Self Resonant	400MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.040" L x 0.022" W (1.02mm x 0.55mm)
Height - Seated (Max)	0.026" (0.66mm)
