LQW15ANR10J00D

Part NumberLQW15ANR10J00D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 100NH 120MA 2.52 OHM

DatasheetLQW15ANyyyy00D Spec

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

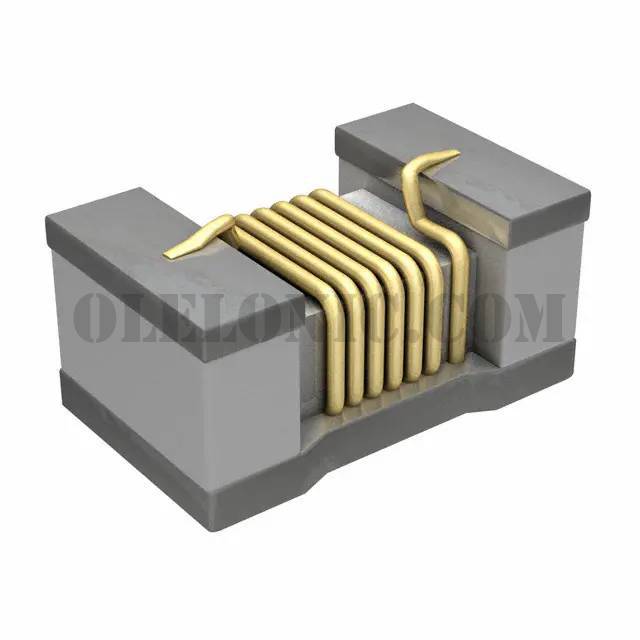

Detailed Description100nH Unshielded Wirewound Inductor 120mA 2.52Ohm Max 0402 (1005 Metric)

To learn about the specification of LQW15ANR10J00D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW15ANR10J00D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW15ANR10J00D.
We are offering LQW15ANR10J00D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW15ANR10J00D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQW15ANyyyy00D Spec
Standard Package	10000
Manufacturer	Murata Electronics North America
Series	LQW15
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	100nH
Tolerance	±5%
Current Rating (Amps)	120mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	2.52Ohm Max
Q @ Freq	20 @ 150MHz
Frequency - Self Resonant	1.5GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	-
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.024" (0.60mm)
