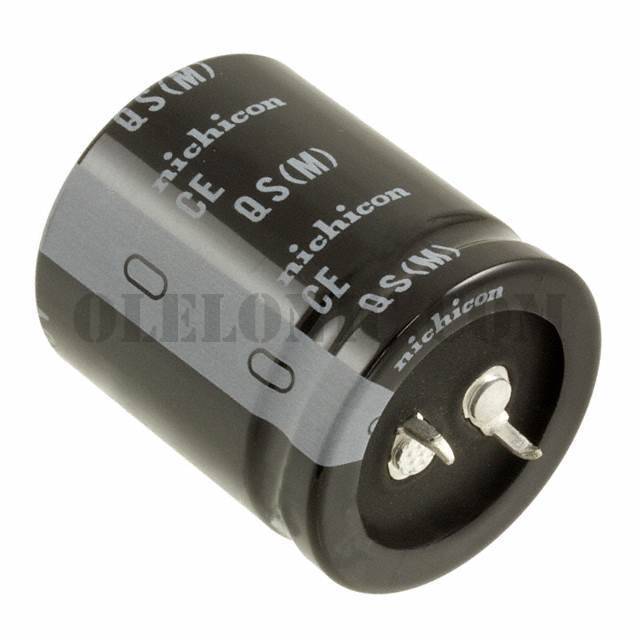

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LQS Series
Standard Package	200
Manufacturer	Nichicon
Series	LQS
Packaging	Bulk
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.3A @ 120Hz
Ripple Current @ High Frequency	1.859A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LQS2G561MELC40	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2V561MELB45	Nichicon, 560µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2V471MELB40	Nichicon, 470µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6151MELA30	Nichicon, 150µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2V331MELB30	Nichicon, 330µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W101MELA25	Nichicon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W820MELZ25	Nichicon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W151MELB25	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6221MELB30	Nichicon, 220µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6471MELC40	Nichicon, 470µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W181MELB30	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6221MELA35	Nichicon, 220µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View

LQS2V391MELB35

Part NumberLQS2V391MELB35
