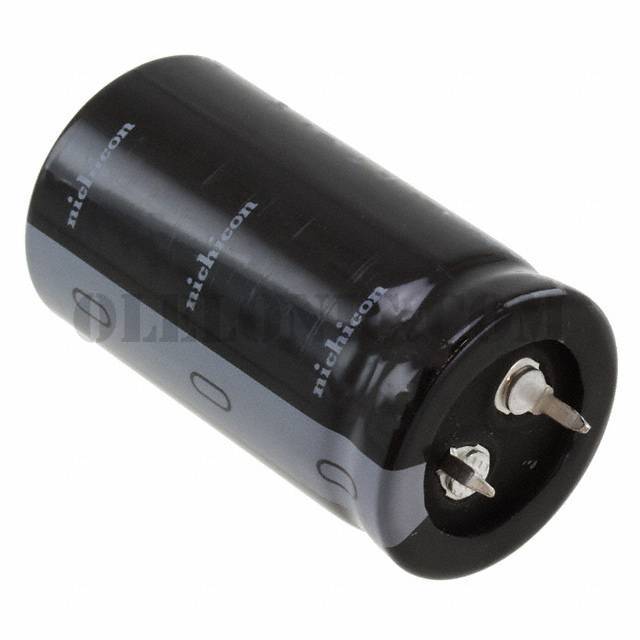

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LQS Series
Standard Package	250
Manufacturer	Nichicon
Series	LQS
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.44A @ 120Hz
Ripple Current @ High Frequency	1.716A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LQS2V181MELZ30	Nichicon, 180µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6221MELZ45	Nichicon, 220µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6681MELC50	Nichicon, 680µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W471MELC45	Nichicon, 470µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W561MELC50	Nichicon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W391MELB50	Nichicon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G681MELC45	Nichicon, 680µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G121MELZ30	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W181MELB30	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G471MELB45	Nichicon, 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W151MELA30	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W101MELZ30	Nichicon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View

LQS2G331MELA45

Part NumberLQS2G331MELA45
