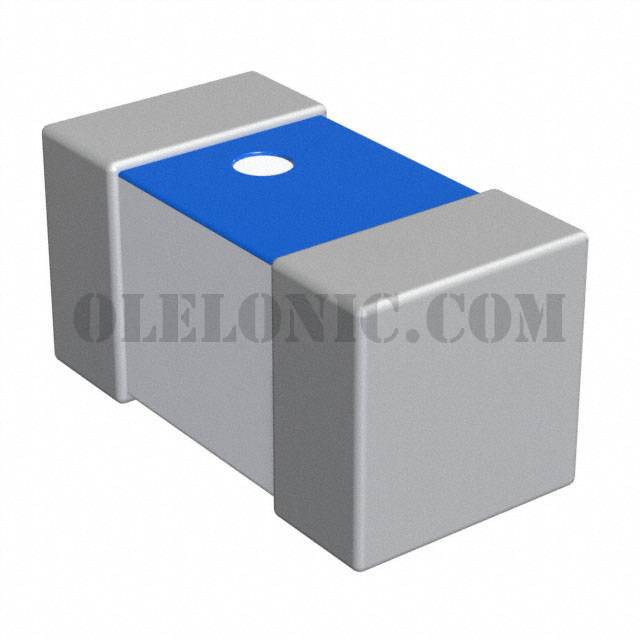

LQP03PN3N3C02D

Part NumberLQP03PN3N3C02D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 3.3NH 1.2A 80 MOHM SMD

DatasheetLQP03PN3N3C02#

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3nH Unshielded Thin Film Inductor 1.2A 80mOhm Max 0201 (0603 Metric)

To learn about the specification of LQP03PN3N3C02D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQP03PN3N3C02D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQP03PN3N3C02D.
We are offering LQP03PN3N3C02D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQP03PN3N3C02D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQP03PN3N3C02#
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQP03
Packaging	Cut Tape (CT)
Part Status	Active
Type	Thin Film
Material - Core	Non-Magnetic
Inductance	3.3nH
Tolerance	±0.2nH
Current Rating (Amps)	1.2A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	80mOhm Max
Q @ Freq	10 @ 500MHz
Frequency - Self Resonant	5.5GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	500MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
