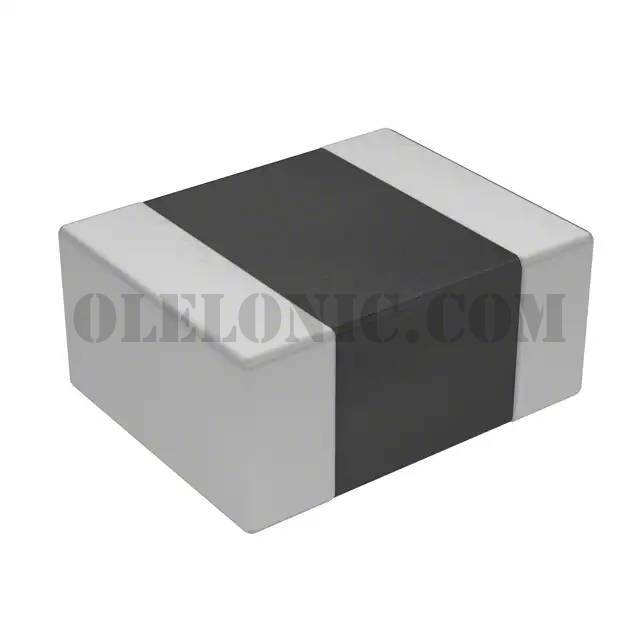

LQM2MPN2R2MG0L

Part NumberLQM2MPN2R2MG0L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 2.2UH 1.2A 138 MOHM

DatasheetLQM2MPNyyyyG0L Ref Sheet

Package / Case0806 (2016 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Shielded Multilayer Inductor 1.2A 138mOhm Max 0806 (2016 Metric)

To learn about the specification of LQM2MPN2R2MG0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM2MPN2R2MG0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM2MPN2R2MG0L.
We are offering LQM2MPN2R2MG0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM2MPN2R2MG0L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM2MPNyyyyG0L Ref Sheet
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQM2
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	2.2µH
Tolerance	±20%
Current Rating (Amps)	1.2A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	138mOhm Max
Q @ Freq	-
Frequency - Self Resonant	40MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806 (2016 Metric)
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
