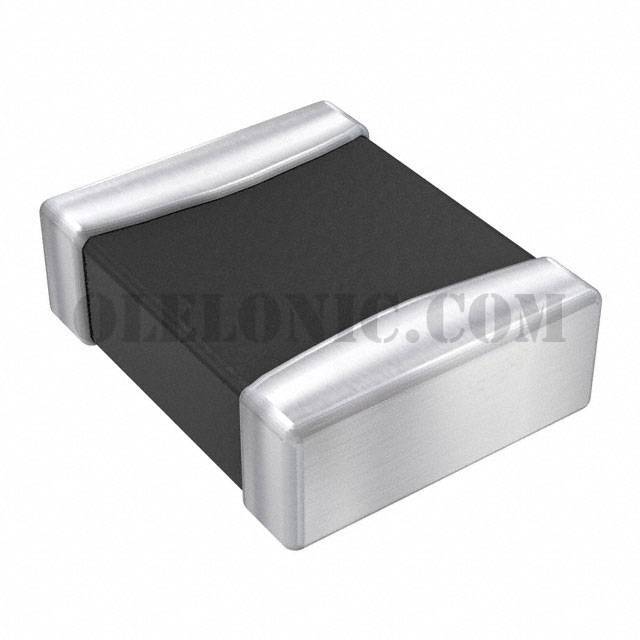

LQM2HPNR24MEHL

Part NumberLQM2HPNR24MEHL

ManufacturerMurata Electronics North America

DescriptionFIXED IND 240NH 3A 34 MOHM SMD

DatasheetLQM2MPNyyyyEHL Ref Sheet

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description240nH Shielded Multilayer Inductor 3A 34mOhm Max 1008 (2520 Metric)

To learn about the specification of LQM2HPNR24MEHL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM2HPNR24MEHL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM2HPNR24MEHL.
We are offering LQM2HPNR24MEHL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM2HPNR24MEHL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM2MPNyyyyEHL Ref Sheet
Standard Package	3000
Manufacturer	Murata Electronics North America
Series	LQM2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	240nH
Tolerance	±20%
Current Rating (Amps)	3A
Current - Saturation	4.5A
Shielding	Shielded
DC Resistance (DCR)	34mOhm Max
Q @ Freq	-
Frequency - Self Resonant	130MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.031" (0.80mm)
