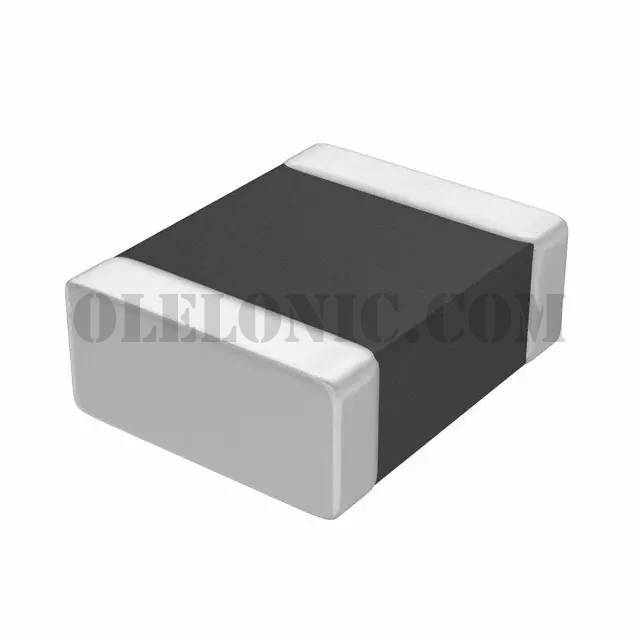

LQM2HPN2R2NJCL

Part NumberLQM2HPN2R2NJCL

ManufacturerMurata Electronics North America

DescriptionFIXED IND 2.2UH 1A 175 MOHM SMD

DatasheetChip Inductors Catalog

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Shielded Multilayer Inductor 1A 219mOhm Max 1008 (2520 Metric)

To learn about the specification of LQM2HPN2R2NJCL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM2HPN2R2NJCL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM2HPN2R2NJCL.
We are offering LQM2HPN2R2NJCL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM2HPN2R2NJCL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

Chip Inductors Catalog

Standard Package

3000

Manufacturer

Murata Electronics North America

Series

LQM2

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Multilayer

Material - Core

Inductance

2.2µH

Tolerance

±30%

Current Rating (Amps)

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

219mOhm Max

Q @ Freq

Frequency - Self Resonant

30MHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

1MHz

Mounting Type

Surface Mount

Package / Case

1008 (2520 Metric)

Supplier Device Package

1008 (2520 Metric)

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.039" (1.00mm)
