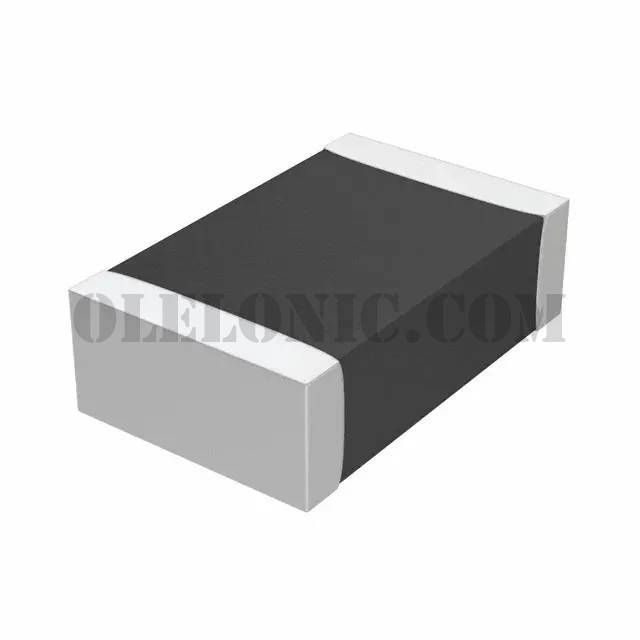

LQM21PN1R5MC0D

Part NumberLQM21PN1R5MC0D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 1.5UH 700MA 260 MOHM

DatasheetStandard Land Pattern Dimensions

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.5µH Shielded Multilayer Inductor 700mA 325mOhm Max 0805 (2012 Metric)

To learn about the specification of LQM21PN1R5MC0D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM21PN1R5MC0D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM21PN1R5MC0D.
We are offering LQM21PN1R5MC0D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM21PN1R5MC0D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Standard Land Pattern Dimensions
Standard Package	4000
Manufacturer	Murata Electronics North America
Series	LQM21
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	1.5µH
Tolerance	±20%
Current Rating (Amps)	700mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	325mOhm Max
Q @ Freq	-
Frequency - Self Resonant	70MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.022" (0.55mm)
