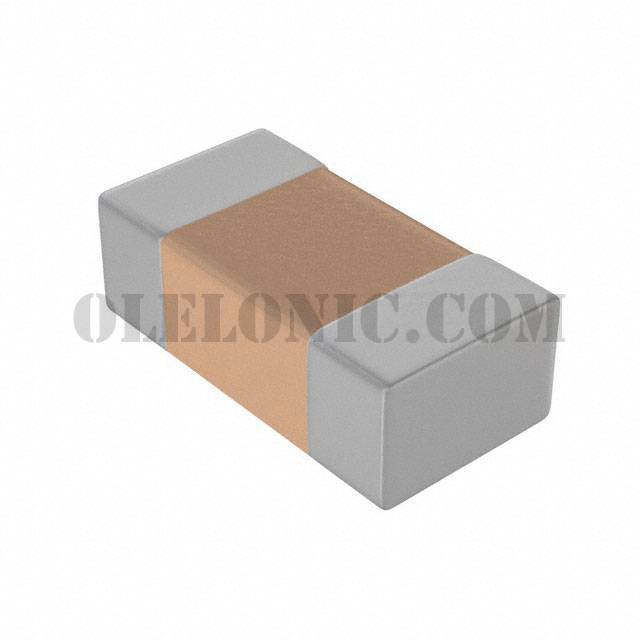

LQM18PN1R5NB0L

Part NumberLQM18PN1R5NB0L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 1.5UH 600MA 350 MOHM

DatasheetChip Inductors Catalog

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.5µH Shielded Multilayer Inductor 600mA 438mOhm Max 0603 (1608 Metric)

To learn about the specification of LQM18PN1R5NB0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM18PN1R5NB0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM18PN1R5NB0L.
We are offering LQM18PN1R5NB0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM18PN1R5NB0L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Chip Inductors Catalog
Standard Package	4000
Manufacturer	Murata Electronics North America
Series	LQM18
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	1.5µH
Tolerance	±30%
Current Rating (Amps)	600mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	438mOhm Max
Q @ Freq	-
Frequency - Self Resonant	50MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.016" (0.40mm)
