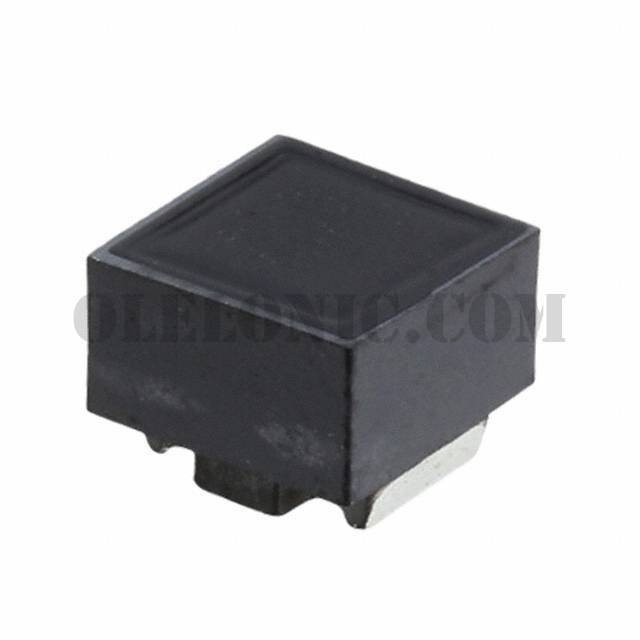

LQH66SN471M03L

Part NumberLQH66SN471M03L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 470UH 240MA 3.08 OHM

DatasheetStandard Land Pattern Dimensions

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description470µH Shielded Wirewound Inductor 240mA 3.08Ohm Max Nonstandard

To learn about the specification of LQH66SN471M03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH66SN471M03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH66SN471M03L.
We are offering LQH66SN471M03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQH66SN471M03L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Standard Land Pattern Dimensions
Standard Package	350
Manufacturer	Murata Electronics North America
Series	LQH66
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	470µH
Tolerance	±20%
Current Rating (Amps)	240mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	3.08Ohm Max
Q @ Freq	-
Frequency - Self Resonant	2.5MHz
Ratings	-
Operating Temperature	-40°C ~ 80°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2525 (6363 Metric)
Size / Dimension	0.248" L x 0.248" W (6.30mm x 6.30mm)
Height - Seated (Max)	0.197" (5.00mm)
